EVENTURI Air Intake System For VAG 2.0 TFSI SEAT - AUDI - VW EVE-2TFSI-CF-INT

Ürün Kodu : EVE-2TFSI-CF-INT

Fiyat :

2,000.00

1950

62,891.40

Seçenekler

SEAT CUPRA 2.0 TSI VW GOLF R 2.0 TFSI AUDI S3 2.0 TFSI

Adet

EVENTURI Air Intake For VAG 2.0 TFSI SEAT - AUDI - VW EVE-2TFSI-CF-INT

Ingilterede EVENTURI Muhendisleri Tarafından Maximum Güç Maximum Kalite Amaçlanarak Tasarlanmış, ve Özel Olarak Üretilmiştir.

VAG Gurubu 2.0TSI Modelleri İçin Bire Bir Uyumluluk Sağlar,

Uyumlu Olan Araçlar;

Audi S3 2.0 TFSI

VW Golf 7 R 2.0 TFSI

SEAT Leon Capra 2.0 TFSI

Bolt/on Kitdir.

Ultra Hafiftir, 1. Sınıf Karbon Fiber Malzemeden Üretilmiştir.

Orjinal Filtre Parçalarının Hiç Bir Parçası Kullanılmadan Profesyonel Bir Ekip Tarafından Kolayca Montajı Yapılır.

Performance Increase : 16-25hp, 15-22ft-lb

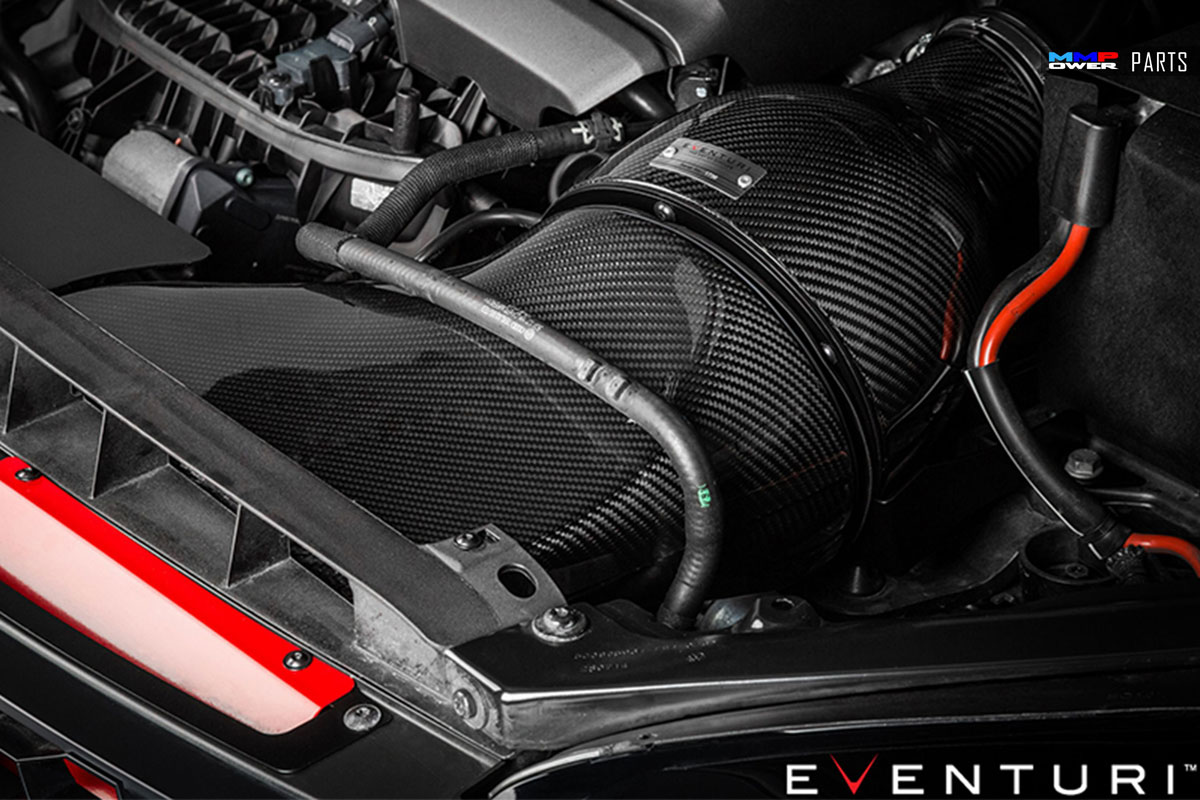

The VAG 2.0 TFSi Eventuri intake has been developed to provide the most efficient and direct airflow path to the turbo. By replacing the OEM our Patent Pending Venturi housing and coupling this with a smooth duct, we have ensured that the airlfow remains as laminar as possible. Furthermore, the addition of a true cold air feed by adding a scoop to the front grill results in the lowest possible inlet air temperature. The result is an optimised intake system which delivers noticeable performance gains consistently.

Part Numbers:

EVE-2TFSI-CF-INT: Audi S3 2.0 TFSI Full Black Carbon intake
EVE-2TFSI-KV-INT: Audi S3 2.0 TFSI Full Kevlar intake

The Eventuri Audi S3 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

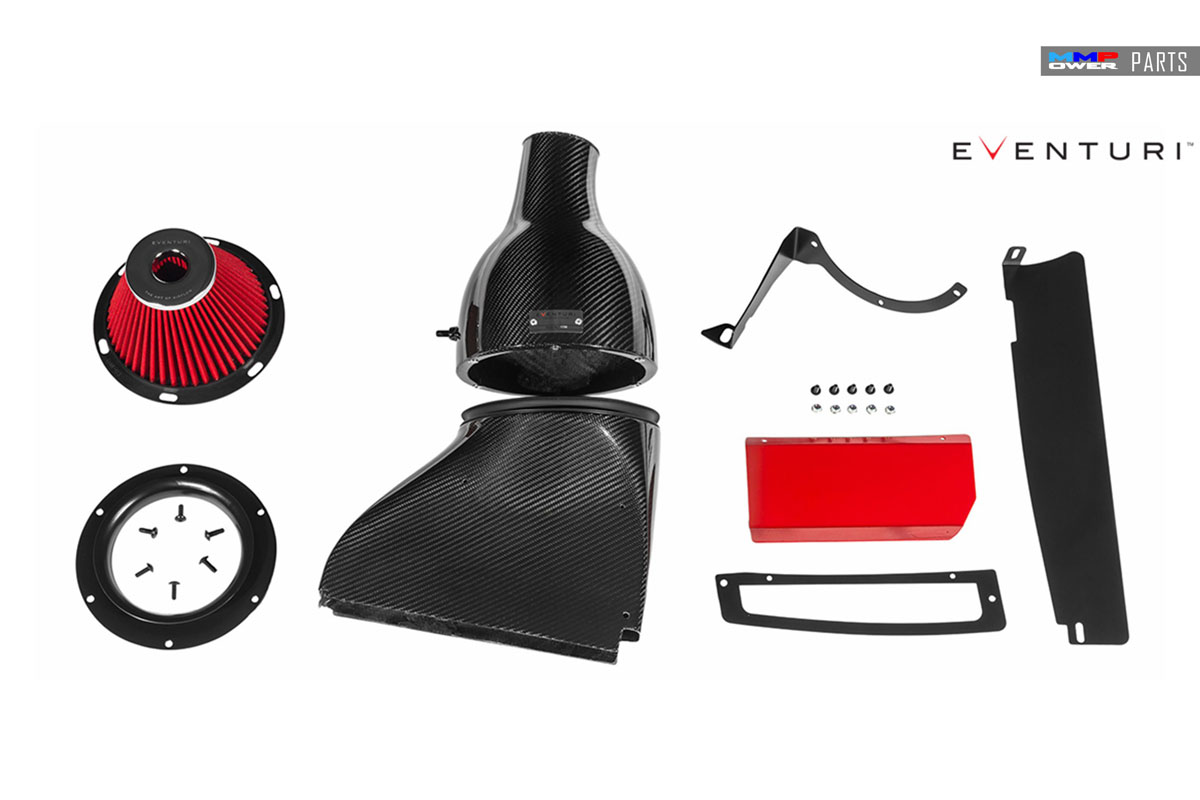

Each intake system consists of:

Prepreg Carbon Fibre Venturi Housing
High Flow Double Cone Air Filter
Aluminium Cowl for smooth airflow entry
Prepeg Carbon Fibre Intake Duct (also available in plastic)
Laser Cut Cold Air Scoop with Surround
Laser Cut Stainless Steel Brackets
Laser Cut Slam Panel Plate

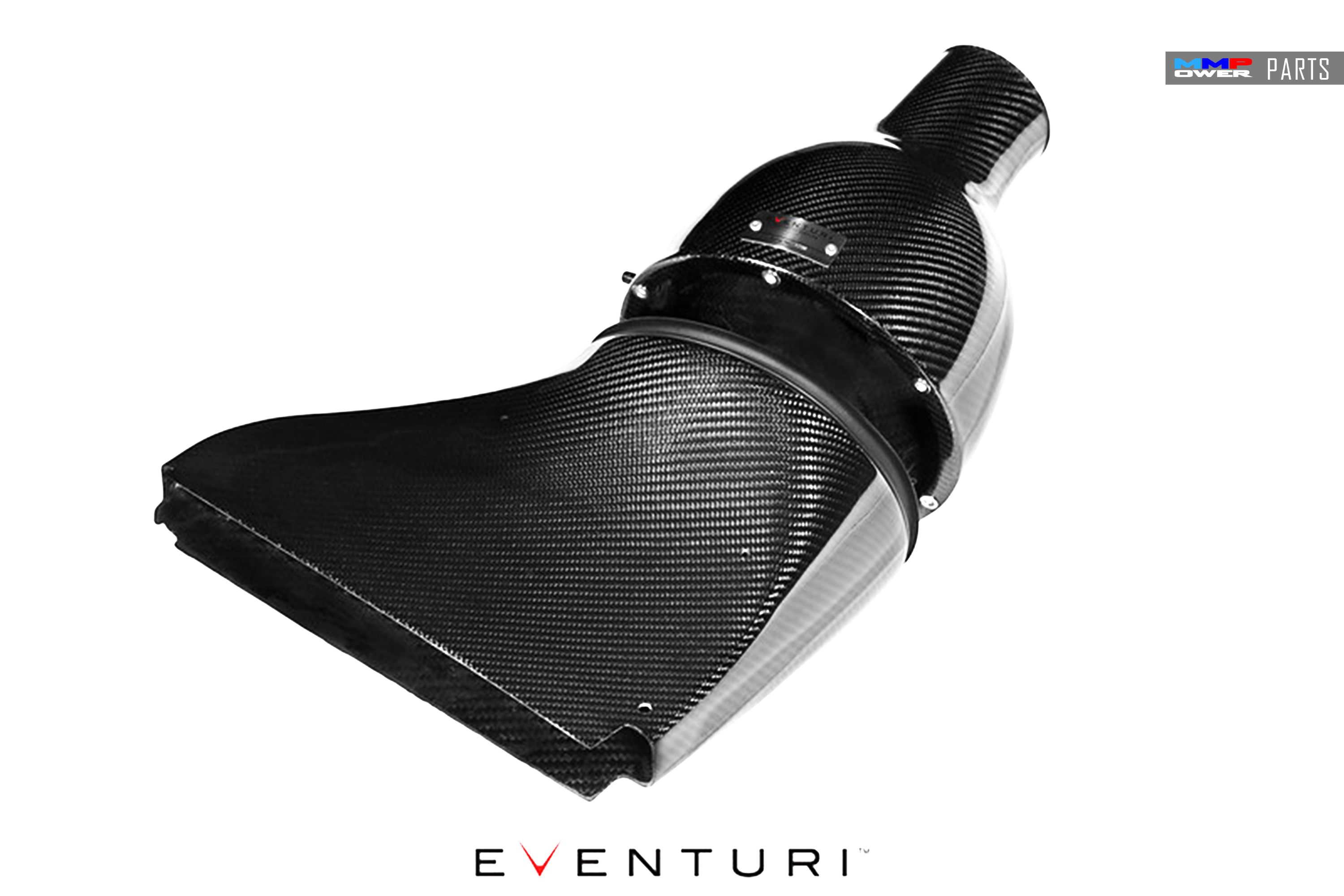

Carbon Intake Housing and Duct

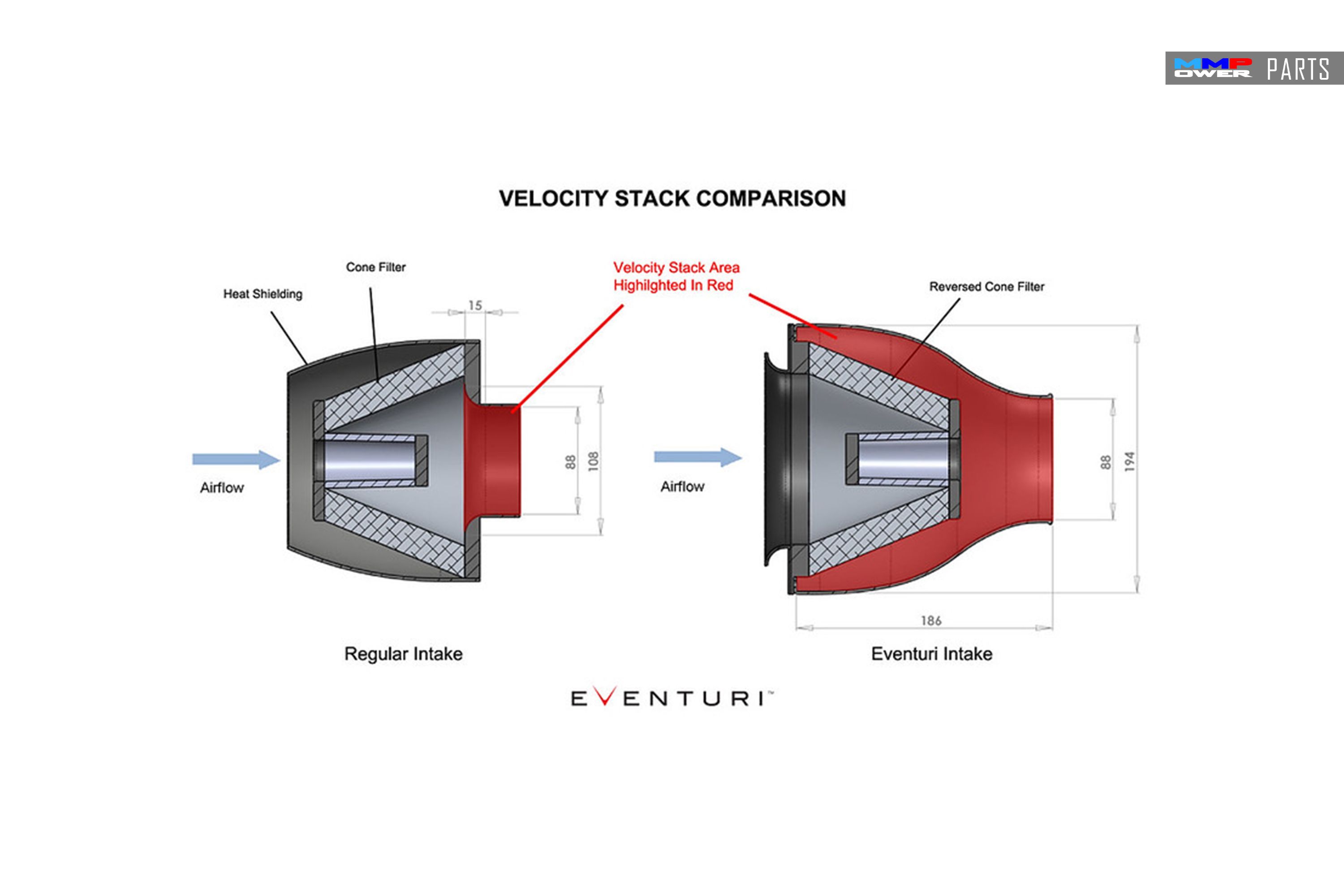

The filter housing comprises of a high flow filter, aluminium cowl, laser cut bracket and the carbon pod itself. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the intake tube. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patent pending design and a regular intake system. Further details can be read in the Technology page. The duct channels cold air from the slam panel opening to the filter. By designing the duct to smoothly transition from the rectangular opening at the front to the circular opening for the filter, it allows the airflow to remain as direct and smooth as possible.

Single Duct VS Double Duct

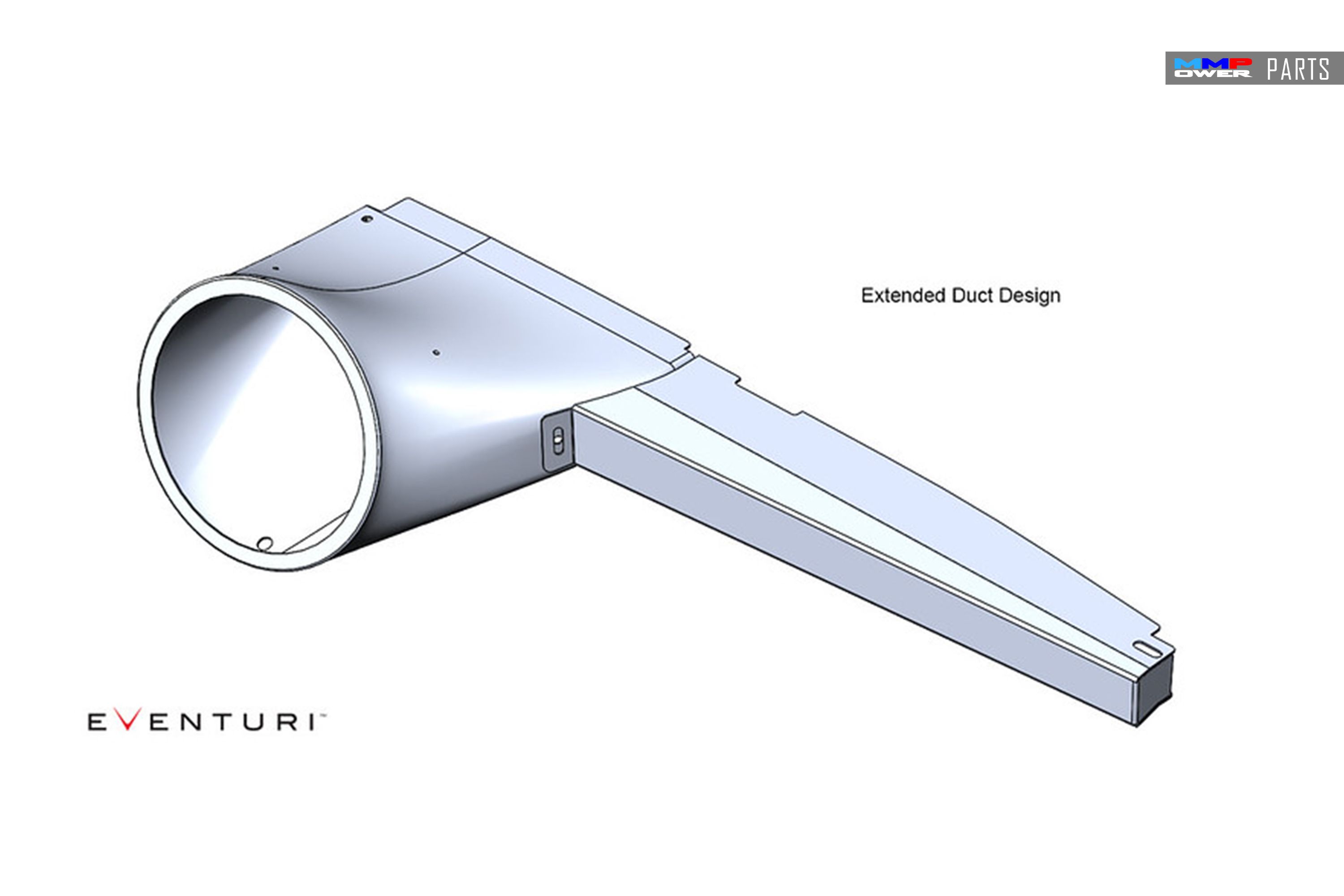

During the development of our system we designed and tested both the single duct and also an extended double duct version:

Testing showed that the double duct did not produce more power, in fact we could not achieve the same results as we did with our single duct design. This is because the single duct allows for the smoothest and most direct airflow path to the filter and the cross sectional area of the opening is not restrictive for this engine. With the scoop directly in front of the opening there is no chance for warm air to mix with the airflow. Furthermore on the double duct, the airflow has to travel at almost a 90 degree angle from the far side of the grill to then enter the filter housing. A dyno graph comparing the single and double duct can be seen in the Performance tab.

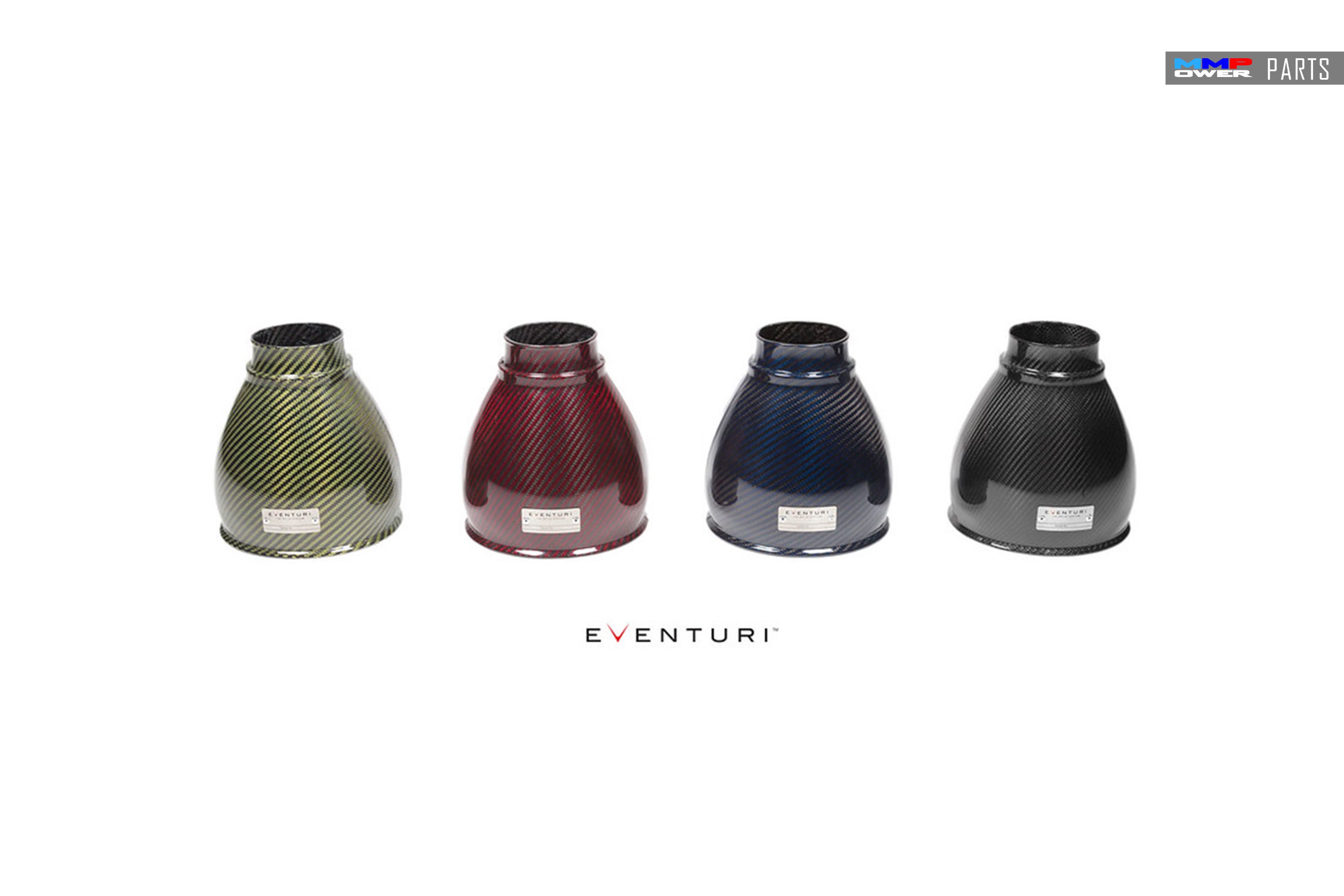

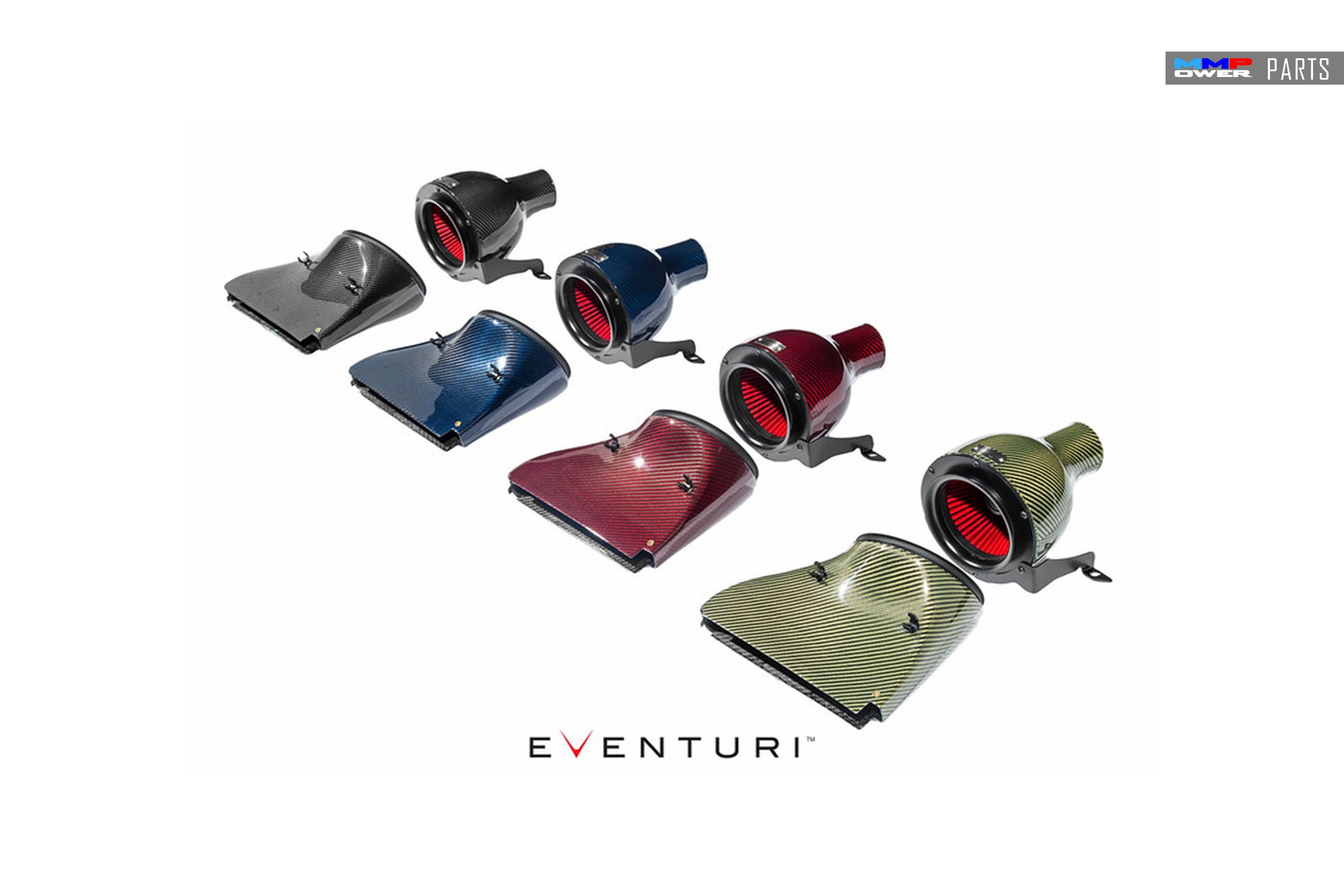

This intake system is available in black carbon fibre as well as a range of Kevlar options in Red, Blue or Yellow.

The Duct is also available in either Carbon or Plastic - the filter housing remains in carbon either way:

Made in United Kingdom
